Examples



REMEMBER, ENERGY IS THE CAPACITY TO CHANGE OTHER OBJECTS (WORK)



WORK IS EQUAL TO THE CHANGE IN ENERGY

W =  ∆E

POWER IS HOW FAST THE WORK IS DONE

POWER = W/∆t=(FORCE * DISTANCE)/TIME

POWER = FORCE * (DISPLACEMENT/TIME)

POWER = FORCE * VELOCITY

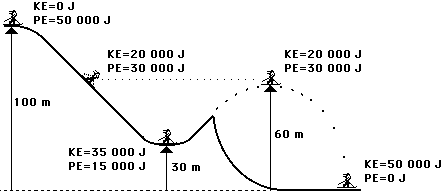

SKIER - ENERGY CONSERVATION

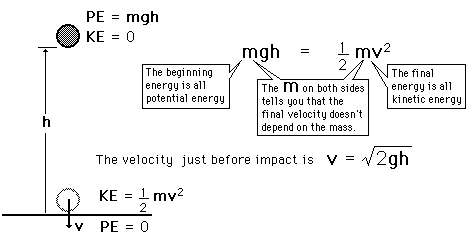

 YOU CAN'T DESTROY ENERGY  KE0 + PE0 = KE1 + PE1

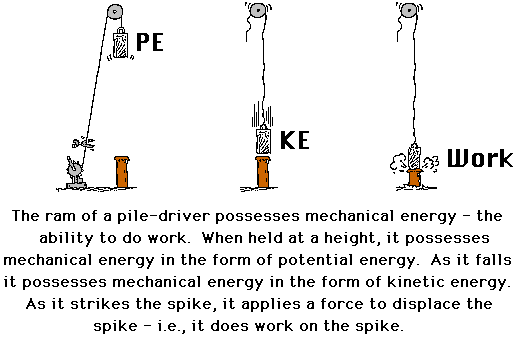

PILE DRIVER


 IF WORK IS DONE, THE ENERGY IS USED TO DO THE WORK, SO THE ENERGY IS DECREASED BY THE AMOUNT OF WORK DONE.





FOOTBALL

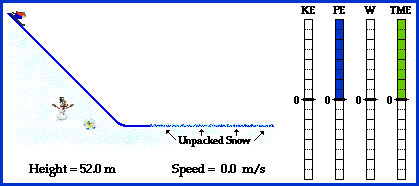

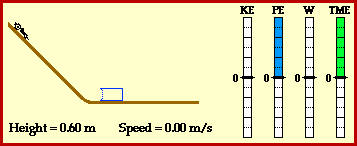

SKIER WITH FRICTION (ANIMATION)



return to top

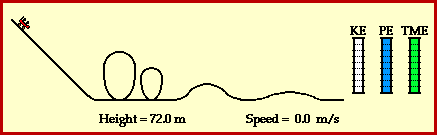

ROLLERCOASTER



return to top







return to top





return to top

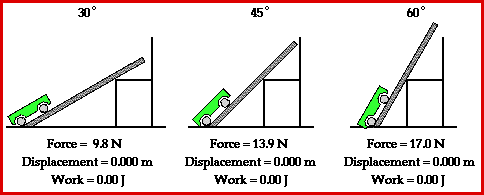

CAR AND RAMP



return to top

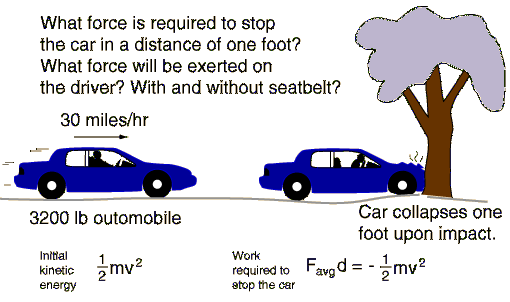

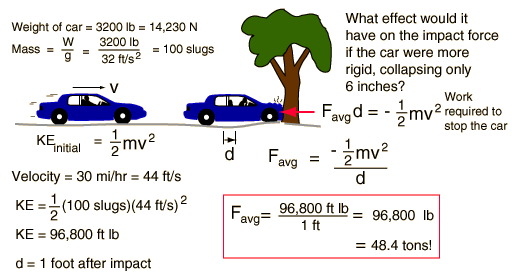

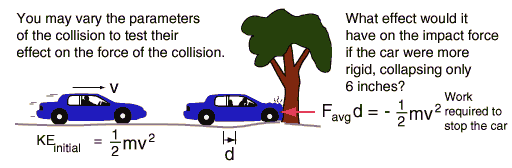

Forces in Car Crashes










return to top

Stopping Distance




return to top








return to top



return to top
